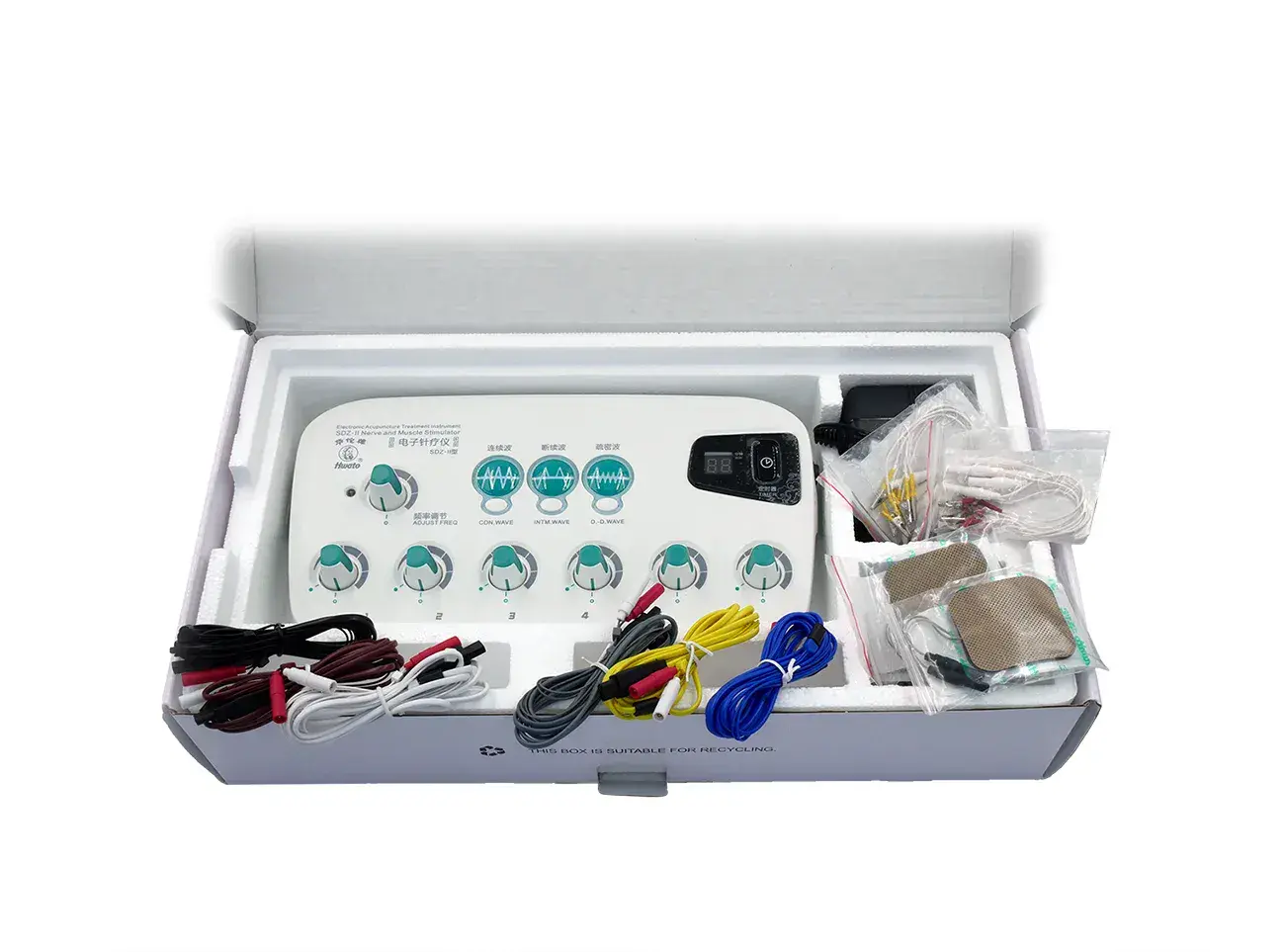

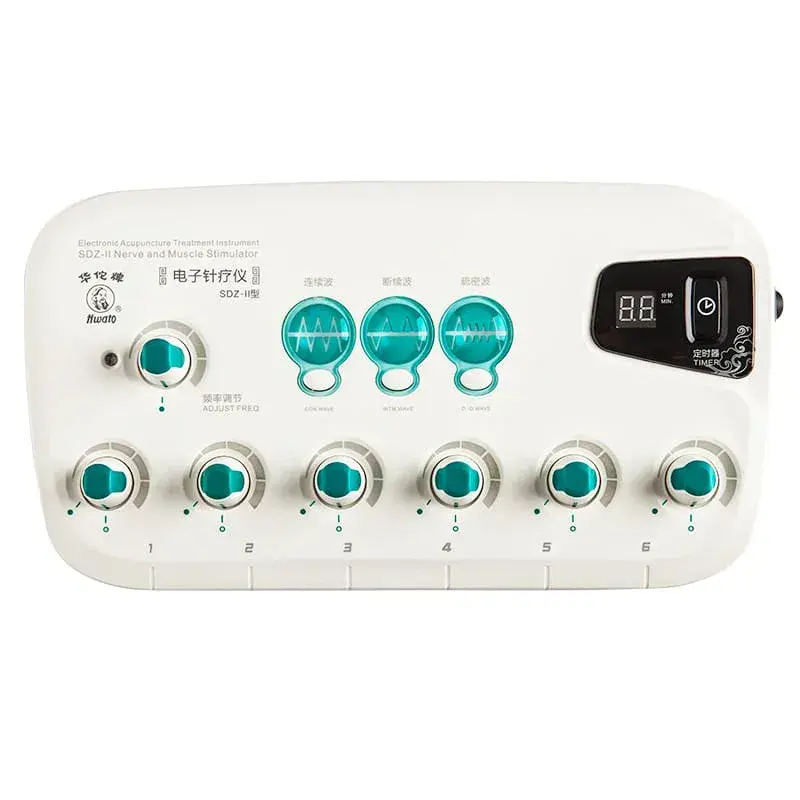

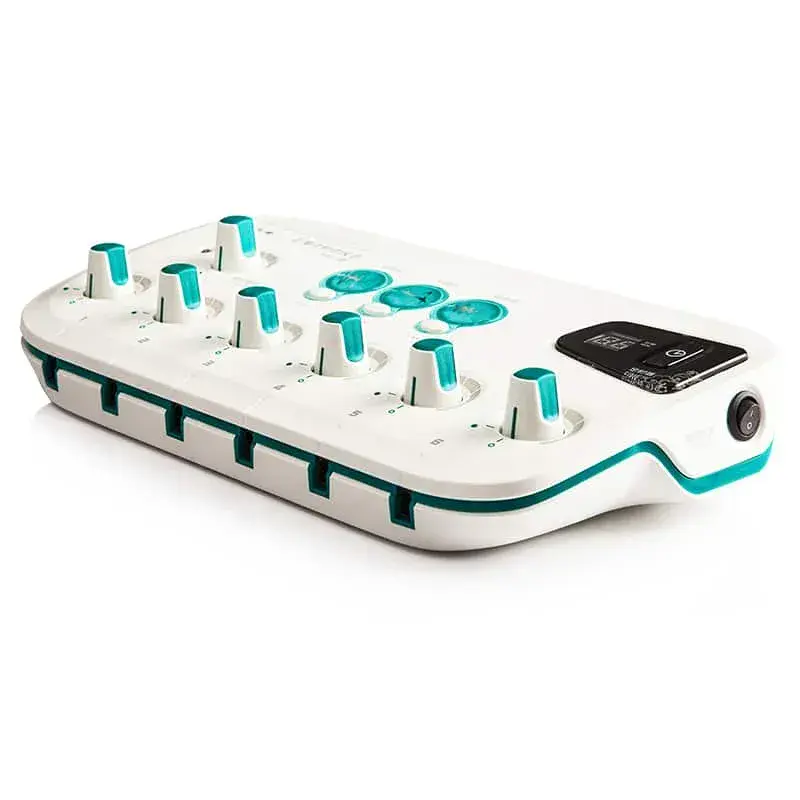

SDZ-II Electronic Acupuncture Instrument

The SDZ-II is an advanced electrotherapy unit, featuring 6 output channels which allow a maximum of 12 needles to be stimulated simultaneously.

The SDZ-II Electronic Acupuncture Treatment Instrument (Nerve and Muscle Simulator) is an advanced electrotherapy unit, featuring 6 output channels which allow a maximum of 12 needles to be stimulated simultaneously.

It has a timer and adjustable frequency levels. A computerized digital wave meter makes the treatment easier.

The device is used for applying low frequency pulses to stimulate acupoints of the human body.

It may be used to apply an electrical current to electrodes on the patients skin to treat pain (TENS) and can be used in combination with acupuncture needles.

The power output (micro-current intensity) is adjustable to suit the patients condition and tolerance.

The unit is powered by six AA batteries (1,5 Volt) or the accompanying AC adapter.

SPECIFICATIONS

Output channels: 6 channels

Pulse shape: asymmetric biphasic triangular pulse wave

Pulse width: 0.175 ms ± 30%

Voltage, max: less than 80 volts

Pulse Frequency:

Continuous: 1 to 100 Hz
Intermittent: 1 to 100 Hz, interval time between groups is 5 sec

Dense: 5 to 100 Hz

Distant-dense: One-fifth of the Dense Wave frequency, duration of distant

Duration of wave:

Distant-dense 5 seconds
Dense: 10 seconds
Continuous: 15 seconds

Power source: 6 standard 1.5 volt C batteries or AC 230-240V

Auto Timer: adjustable

Display: Multi-pulse Wave Frequency LCD

OutPut Switches: 6 Rheostat Adjustable

Size of the instrument: 26cm x 19cm x 10cm
(body only)

Weight: 1 kg

Specifications

Product Code

EA70

Weight

0.75kg
