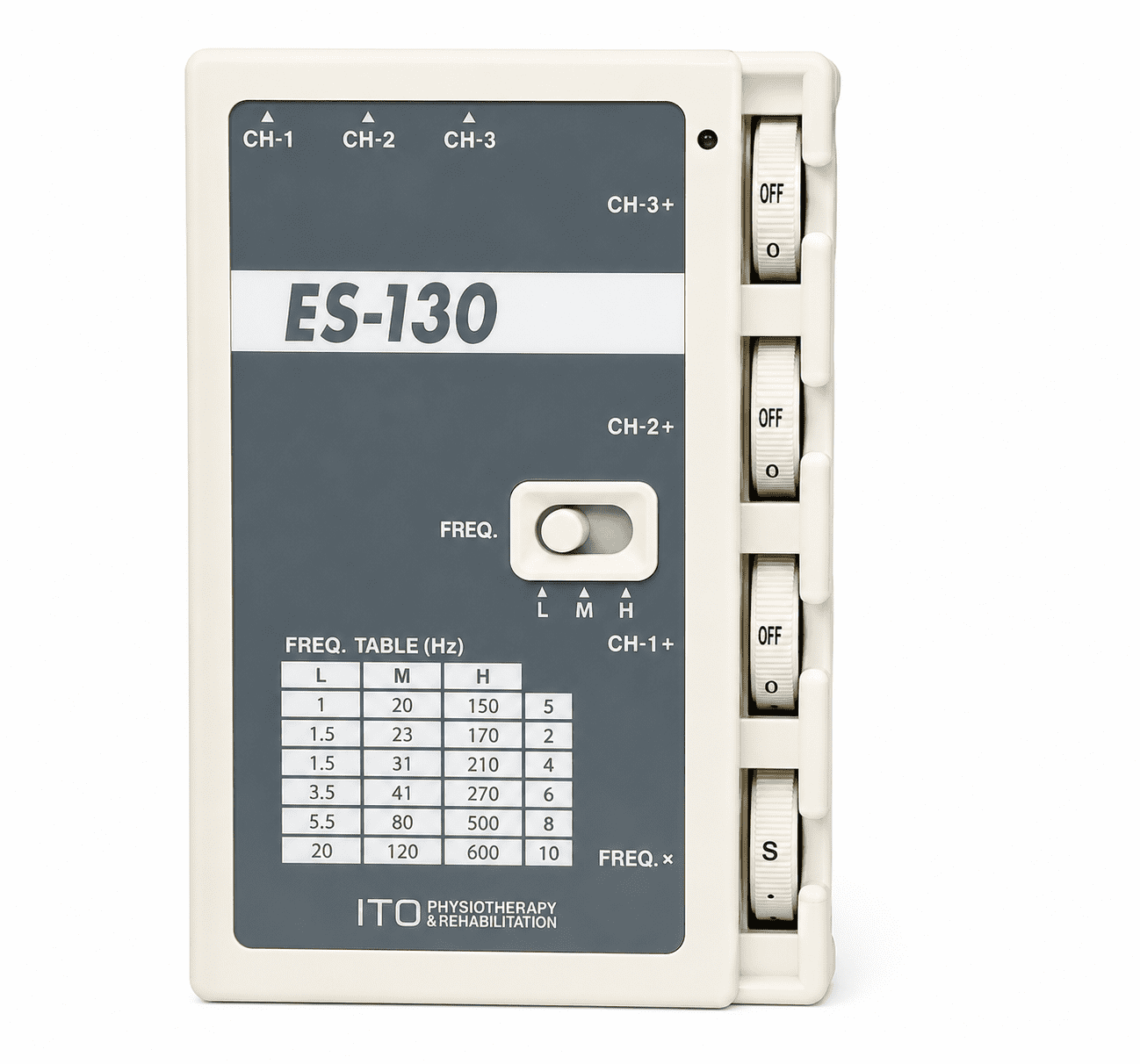

ES-130 Electro Acupuncture Unit – 3 Channel Portable Electroacupuncture Device

The ES-130 Electro Acupuncture Unit is a compact, lightweight 3-channel electroacupuncture device from Japanese manufacturer ITO. The ES-130 is the updated, re-branded version of the popular IC1107, offering a portable and practical solution for professional electroacupuncture treatments.

Palm-sized yet robust, the ES-130 features three independently controlled output channels, allowing the intensity of each channel to be adjusted separately. The unit provides a variable output frequency of 0–500Hz, with pulse rate indicated by a flashing light for convenient visual monitoring during use.

Adjustable Low & High Output Settings

The ES-130 offers a choice of low or high output intensity, allowing practitioners to select the appropriate setting for their treatment requirements.

Low Setting: Maximum 9.0mA ±10%
High Setting: Maximum 15mA ±10%
Variable Frequency: 0–500Hz
Three independently controlled output channels
Unique asymmetric bi-phasic pulse

Compact & Portable Design

Measuring just 61 × 96 × 27mm, the ES-130 is designed to fit comfortably in the palm of the hand. Its compact construction makes it particularly convenient for both clinic-based and mobile acupuncture practitioners.

The unit is powered by a standard 9V battery and includes a protective carrying case and belt clip for convenient transport and storage.

Product Features

Professional 3-channel electro acupuncture unit
Japanese ITO brand
Updated replacement/re-brand of the popular IC1107
Three independently controlled output channels
Adjustable 0–500Hz frequency
Low and high output intensity settings
Flashing light pulse-rate indication
Asymmetric bi-phasic pulse
Built-in battery checker
Compact, palm-sized design
Lightweight and portable
Protective carrying case and belt clip included

Supplied With

ES-130 Electro Acupuncture Unit
3 sets of CE wire leads with rectangular CE jack
Protective carrying case
Belt clip
User instructions

Please note: 9V battery is not supplied.

Technical Specifications

Frequency: 0–500Hz variable
Amplitude – Low: Max. 9.0mA ±10%
Amplitude – High: Max. 15mA ±10%
Phase Duration: 100µs
Pulse Shape: Asymmetric bi-phasic
Number of Channels: 3
Additional Functions: Battery checker and pulse-rate indication
Power Source: 9V battery (not supplied)
Dimensions: 61mm (W) × 96mm (D) × 27mm (H)
Weight: Approx. 200g

Replacement Leads

For replacement or spare leads:

EA39S – Square plug fitting
EA39 – Round pin adaptor for older IC1107 models

The ITO ES-130 Electro Acupuncture Unit is an excellent choice for practitioners looking for a compact, reliable and highly portable 3-channel electroacupuncture machine with independently adjustable outputs and variable frequency control.
