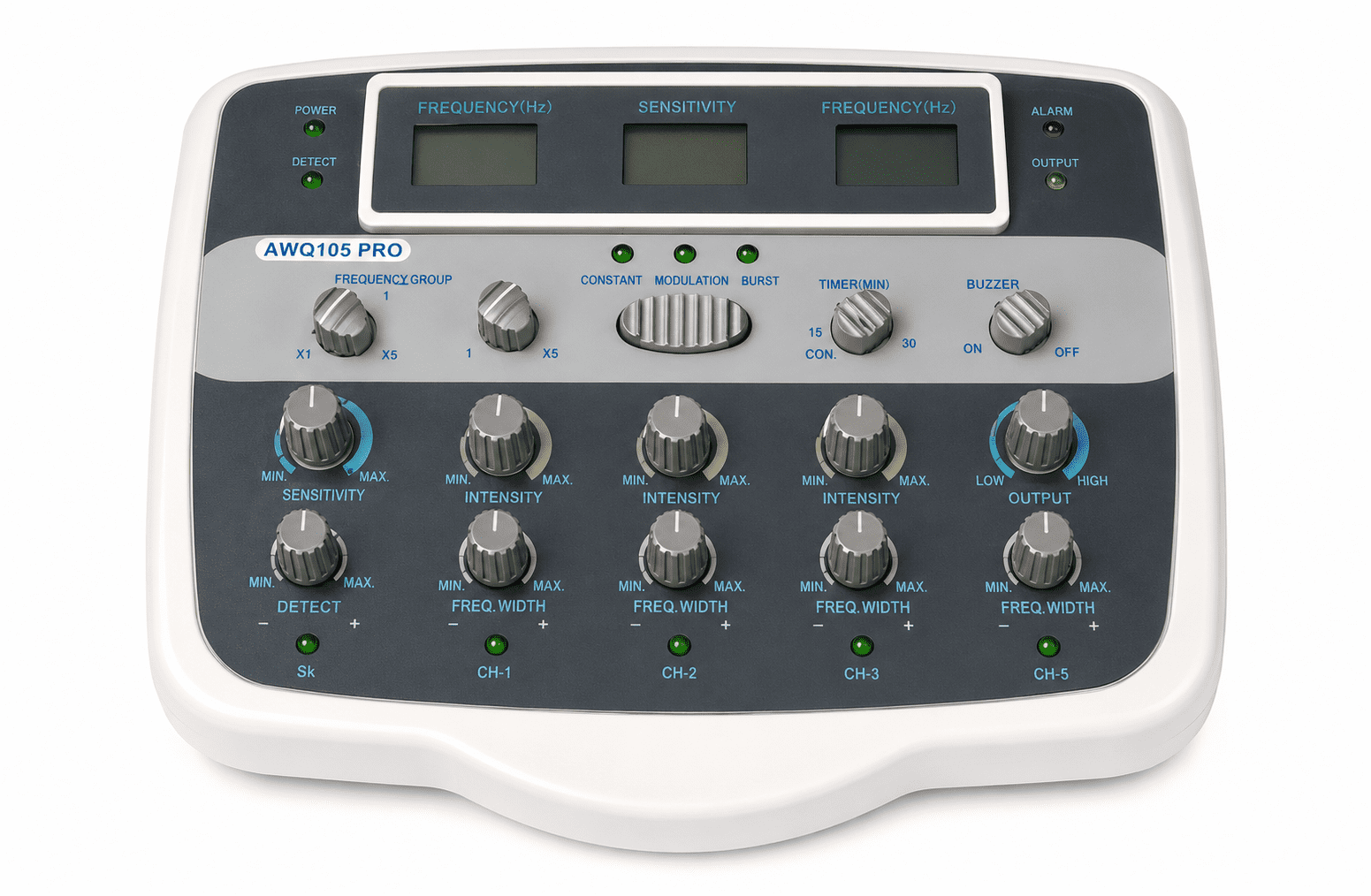

AWQ105 Pro Electronic Acupunctoscope – 5 Output Electroacupuncture & Point Detection Unit
The AWQ105 Pro Electronic Acupunctoscope is an advanced professional electroacupuncture and acupuncture point detection unit, designed to provide precise control over stimulation settings across multiple channels.
Featuring 5 outputs, including a dedicated output for the detection and stimulation probe, the AWQ105 Pro combines electroacupuncture stimulation and acupuncture point location in one versatile professional device.
Independent Frequency & Pulse Width Control
The four main treatment channels are divided into two independently adjustable groups:
Group 1: Channels 1 & 2
Group 2: Channels 3 & 4
Each group has separate frequency and pulse width controls, allowing practitioners to use different stimulation parameters across the two groups rather than applying one setting to all channels.
Digital LCD Displays
Three LCD displays provide clear information during operation:
- Two displays show the precise frequency setting for each channel group
- A third display shows sensitivity during acupuncture point detection
- The detection display also shows frequency during direct probe stimulation
Acupuncture Point Detection & Stimulation
A dedicated fifth output is designed specifically for the detection and stimulation probe. The adjustable sensitivity control assists with acupuncture point location, while the probe can also be used for direct point stimulation.
An optional buzzer function provides audible feedback during point detection and can be switched on or off as required.
Three Stimulation Modes
The AWQ105 Pro provides three selectable stimulation modes:
- Continuous – adjustable pulse rate and pulse width
- Modulation – preset pulse rate and width ramp up and down over a 6-second cycle
- Burst – preset pulse rate and width alternate in 3-second intervals
Product Features
- Professional 5-output electronic acupunctoscope
- 4 electroacupuncture treatment channels
- Dedicated output for point detection and probe stimulation
- Channels 1 & 2 and Channels 3 & 4 independently grouped
- Separate frequency and pulse width adjustment for each group
- 3 LCD digital displays
- Adjustable acupuncture point detection sensitivity
- Continuous, Modulation and Burst stimulation modes
- Selectable High and Low output
- Treatment timer with Continuous, 15-minute and 30-minute settings
- Buzzer on/off control during point detection
- Smooth output intensity adjustment
- Designed to minimise crossover and interference between outputs
- Suitable for professional acupuncture and clinical use
Technical Specifications
Total Outputs: 5
Treatment Channels: 4
Detection/Stimulation Probe Output: 1
Waveform: Biphasic square wave with negative spike
Pulse Width – X1: 50–500µs adjustable
Pulse Width – X5: 10–100µs adjustable
Pulse Rate – X1: 1–100Hz adjustable
Pulse Rate – X5: 5–500Hz adjustable
Continuous Mode:
X1: 1–100Hz / 50–500µs
X5: 5–500Hz / 10–100µs
Modulation Mode: Preset pulse rate and pulse width ramp up and down over a 6-second cycle.
Burst Mode: Preset pulse rate and pulse width operate in alternating 3-second intervals.
Output Selection: High / Low
Timer: Continuous / 15 minutes / 30 minutes
Point Detection: Adjustable sensitivity with optional audible indication
Professional Electroacupuncture & Point Location
With its 5 outputs, independent channel-group controls, digital displays, multiple stimulation modes and integrated acupuncture point detector, the AWQ105 Pro provides a flexible solution for professional practitioners requiring precise control over electroacupuncture treatments.
Important Notice for USA Customers: The AWQ105 Pro does not currently hold FDA approval and cannot be supplied for shipment to the USA.
