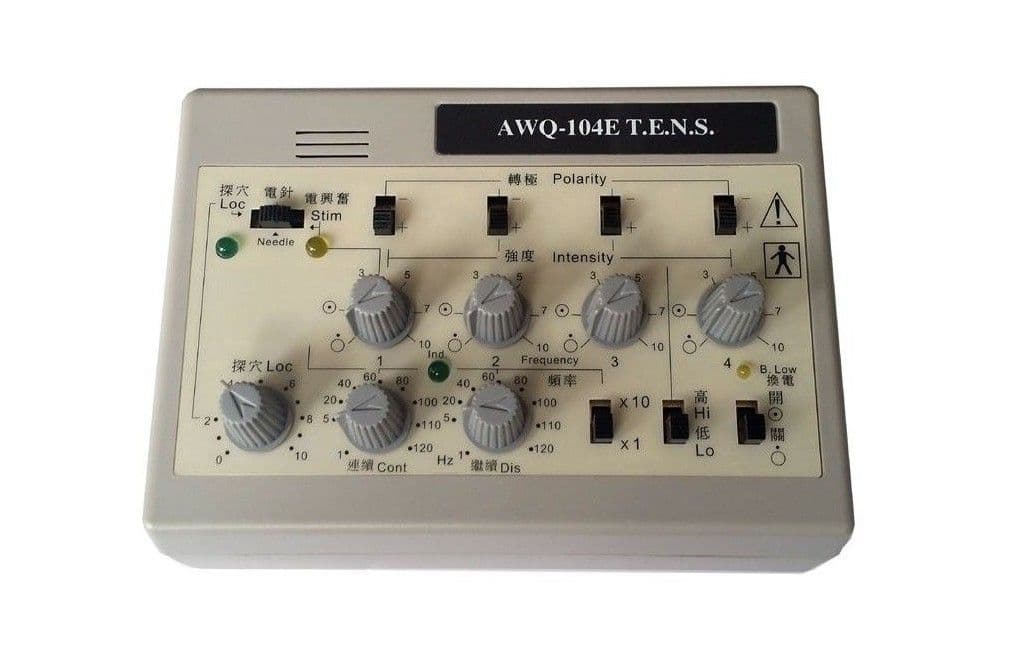

AWQ104E Electronic Acupuncturescope – 4 Channel Electroacupuncture Unit
The AWQ104E Electronic Acupuncturescope is a professional 4-channel electroacupuncture and point-location unit designed for use by trained practitioners in Chinese acupuncture and electrotherapy applications.
Combining electrical point location with electroacupuncture stimulation, the AWQ104E provides four independent output channels, adjustable frequency settings and a choice of continuous, intermittent and dense-disperse waveforms.
A sensitive point-location function provides both visual and audible indication, while individual polarity reversal switches give practitioners greater control across each channel. The selectable high and low voltage settings allow the unit to be configured for compatible needle-based electroacupuncture or TENS applications.
Key Features
- 4-channel output for multi-point treatment
- Electronic circuitry designed to prevent channel crossover
- Independent polarity reversal switch for each channel
- Sensitive acupuncture point location with light and sound indication
- E-E/APD treatment and point-location selector
- High/low voltage selection
- Low setting for compatible acupuncture needle applications
- High setting for TENS applications
- Continuous, intermittent and dense-disperse (modulated) waveforms
- Two adjustable frequency ranges

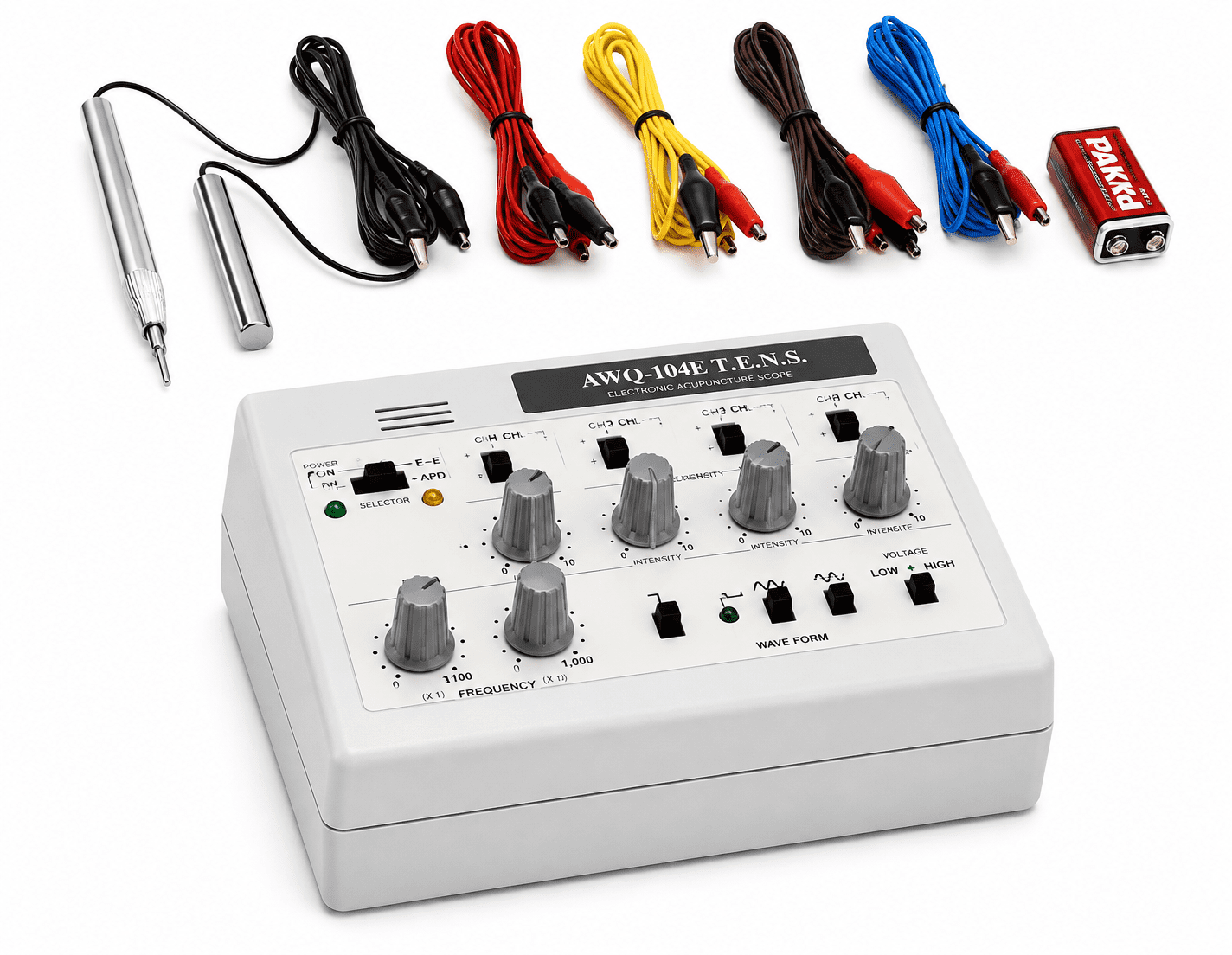

- Supplied with improved crocodile clip leads and detection probe
- Compact, portable design
- Powered by a standard 9V battery
Technical Specifications
Channels: 4 outlets
Output Current – Low: 0–18mA ±20% (500Ω load), adjustable
Output Current – High: 0–40mA ±20% (500Ω load), adjustable
Pulse Rate X1: Up to 120Hz, adjustable
Pulse Rate X10: Up to 1200Hz, adjustable
Pulse Width X1: 350µs
Pulse Width X10: 40µs
Pulse Shape: Biphasic rectangular wave
Waveforms: Continuous/adjustable, dense-disperse and intermittent
Polarity: Reversible positive/negative
Output Jack: 3.5mm
Power Supply: 9V PP3 / 6F22 battery or equivalent (battery not supplied)
Dimensions: 155mm (W) × 105mm (D) × 60mm (H)
Weight: 330g (unit only)
Tolerance: ±20%
Operating Temperature: +16°C to +40°C (61°F to 104°F)
Professional Electroacupuncture & Point Location
With four channels, multiple waveform options and integrated point detection, the AWQ104E Electronic Acupuncturescope provides practitioners with a versatile solution for electroacupuncture, acupuncture point location and compatible TENS applications.
Please note: This equipment is intended for use by appropriately trained practitioners. Always follow the manufacturer's operating instructions and applicable professional guidance.
