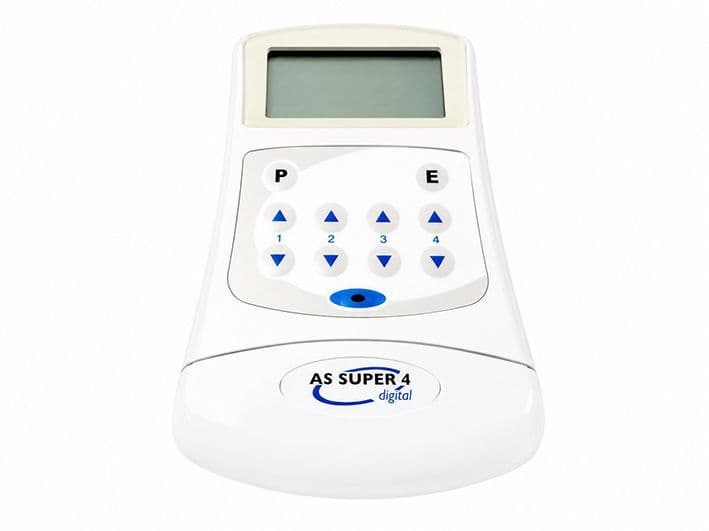

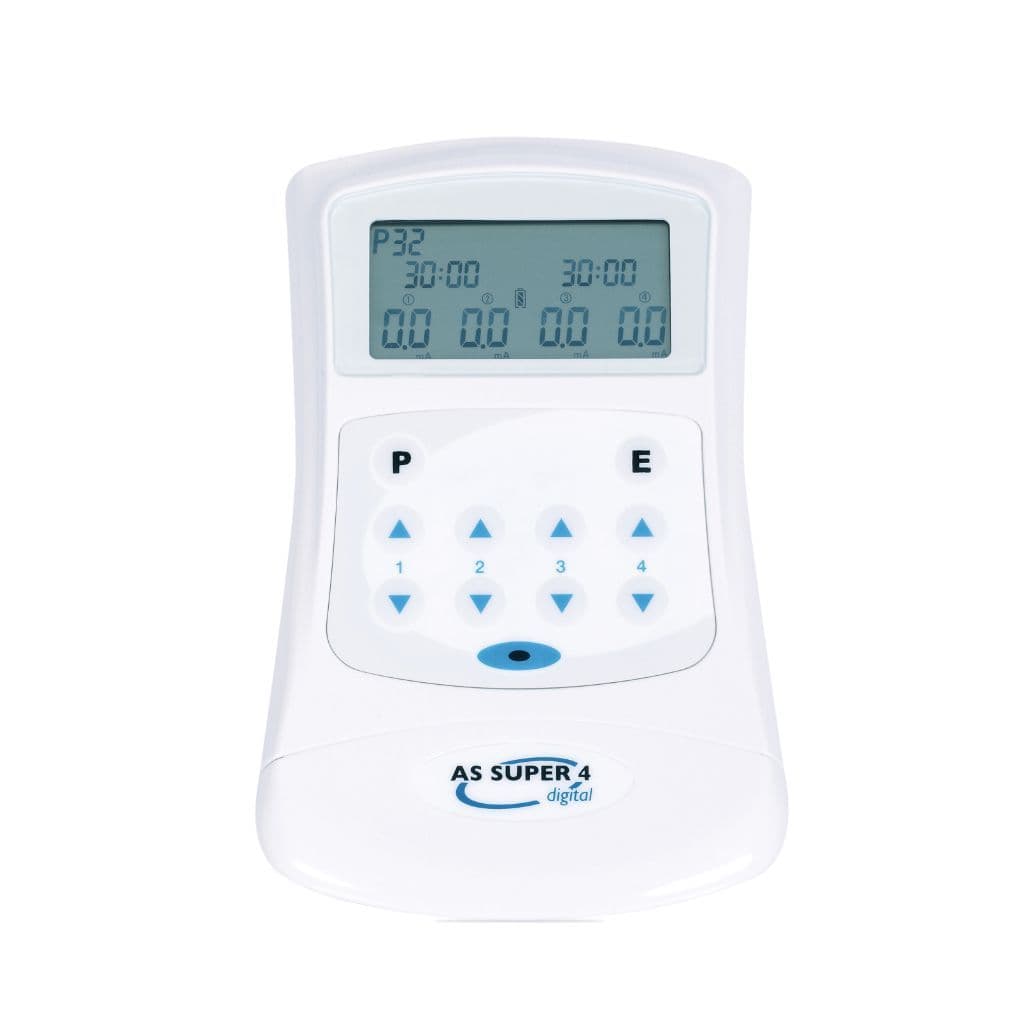

AS Super 4 Digital

The AS Super 4 digital is one of the newest generation of acupuncture needle stimulators offering modern design with the latest digital technology.

The unit includes 30 fixed programs and 7 free programs for your own parameter settings, HAN stimulation parameters are also included for modern pain relief treatment.

The AS Super 4 digital offers 4 channels for the stimulation of up to 8 needles at any one time and the intensity of each individual channel can be set separately in steps of 0.1 mA.

•   4 Channel output
•  37 programs divided into 9 program groups (1.0 to 9.0).
•  Each program group comprises several subprograms (1.2 or 9.6).
•  Contains Han and Nogier programs
•  7 free programs, where frequency, pulse width and therapy time can be modified
•  Very small & lightweight crocodile clip needle attachment - Either battery or mains circuit power

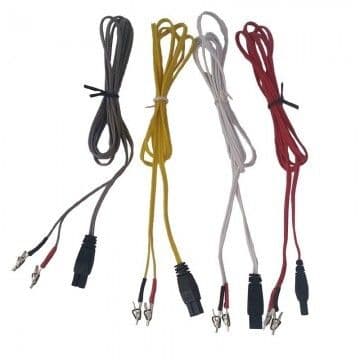

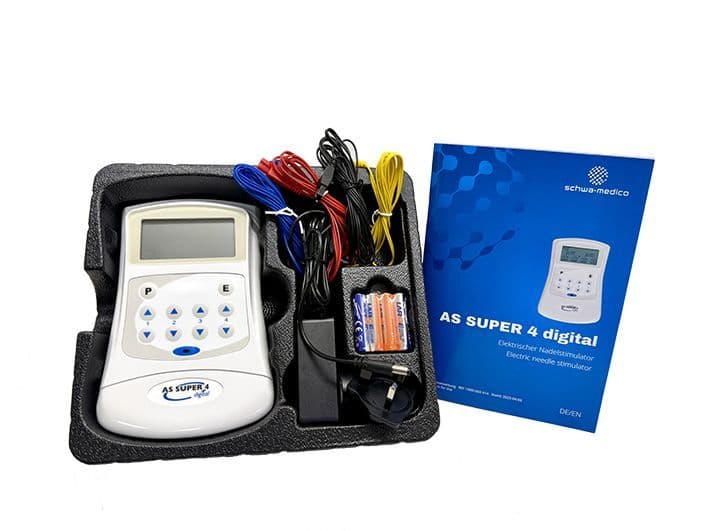

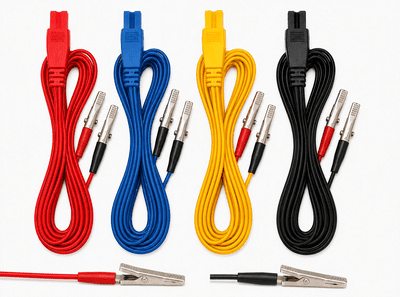

•  Supplied with 4 coloured lead wires, 4 AAA batteries (for UK deliveries only), mains circuit adaptor and operating instructions

SPECIFICATION:

Output current: max: 20 mA (with a load resistor of 1k)

Frequency range: 1-120 Hz

Impulse width: 50-300 s

Power supply: mains supply transformer or 4 x 1.5 V battery

Dimensions: 175 x 113 x 45 mm

Weight approx.: 191 g (without batteries)
